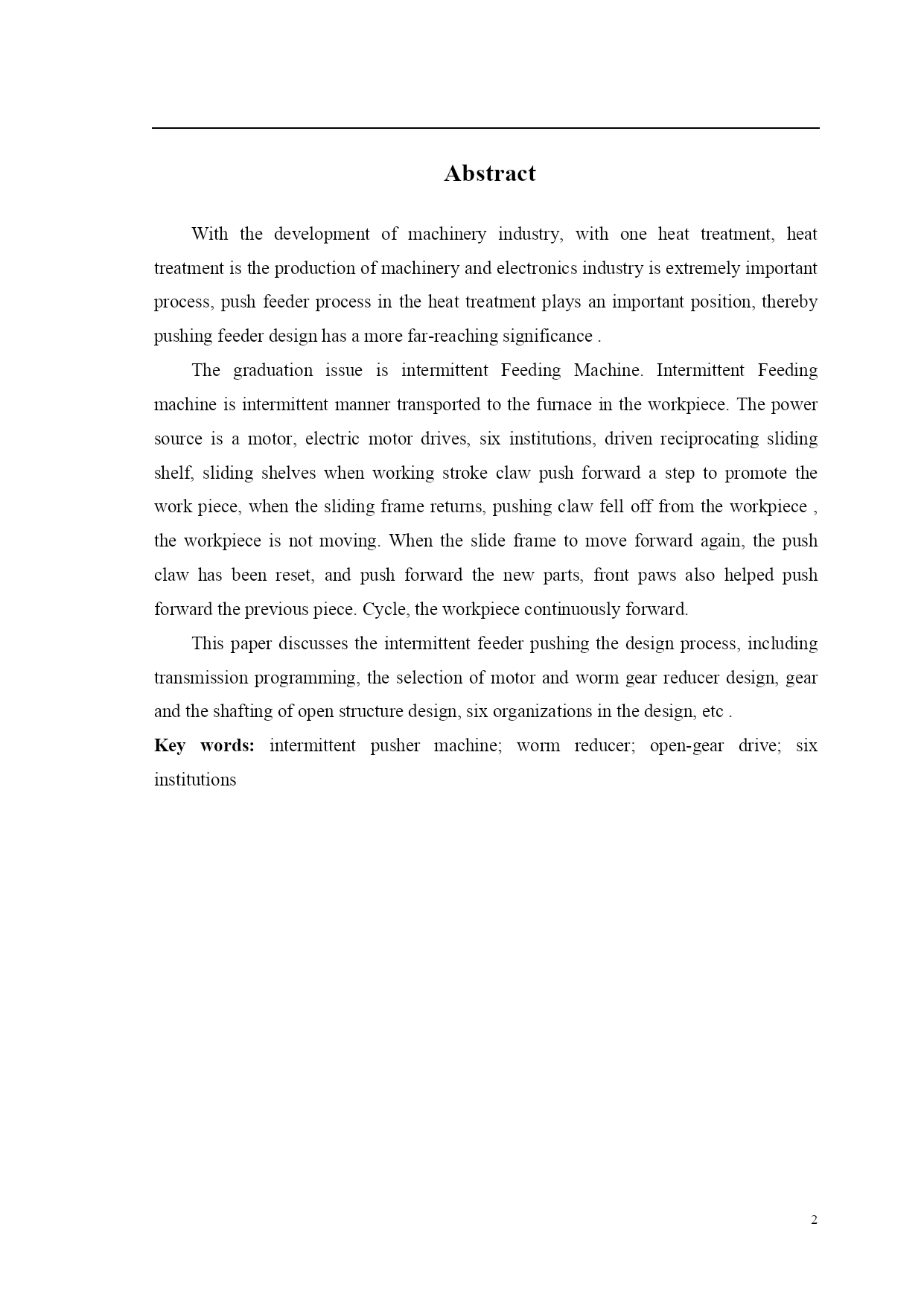

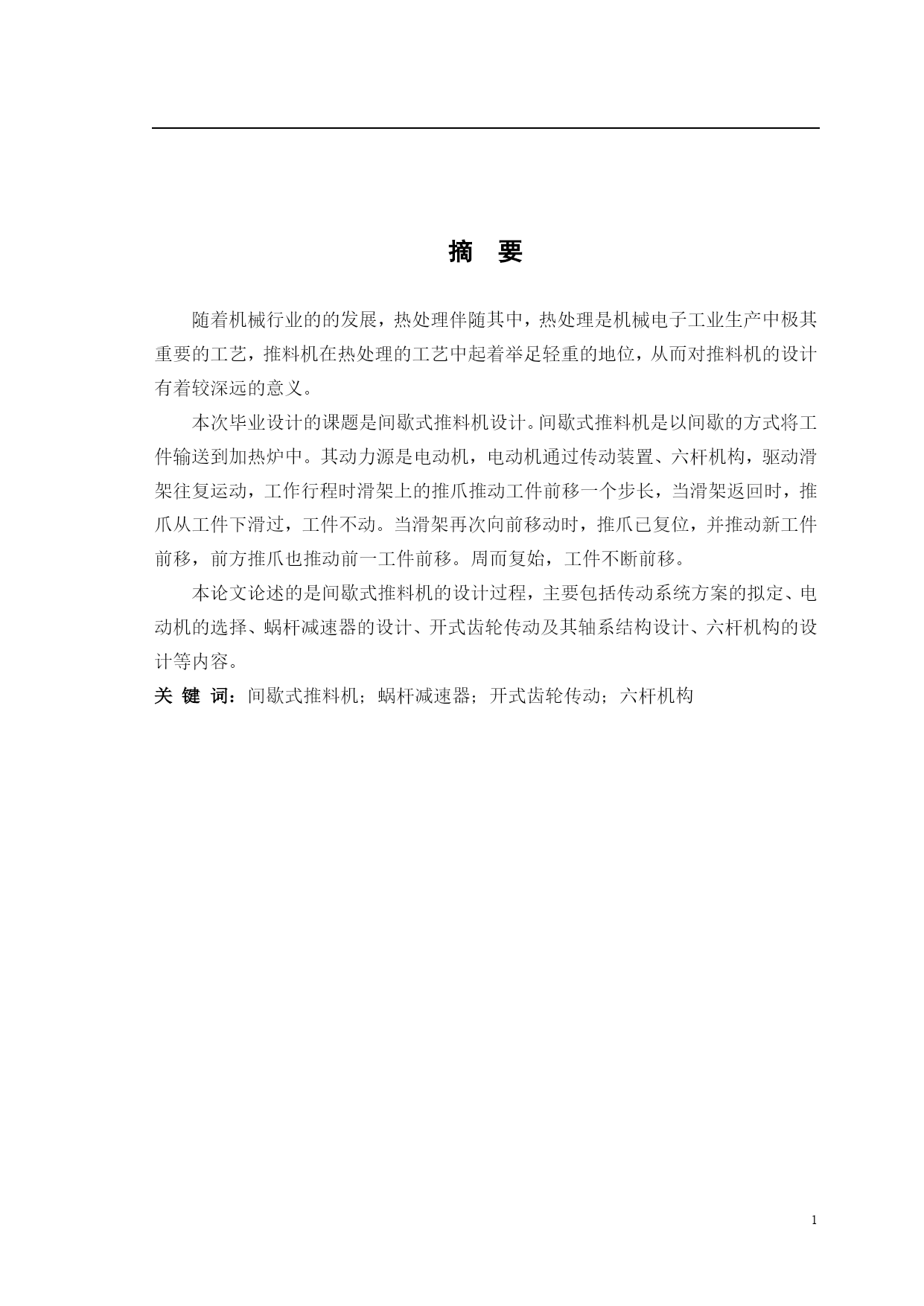

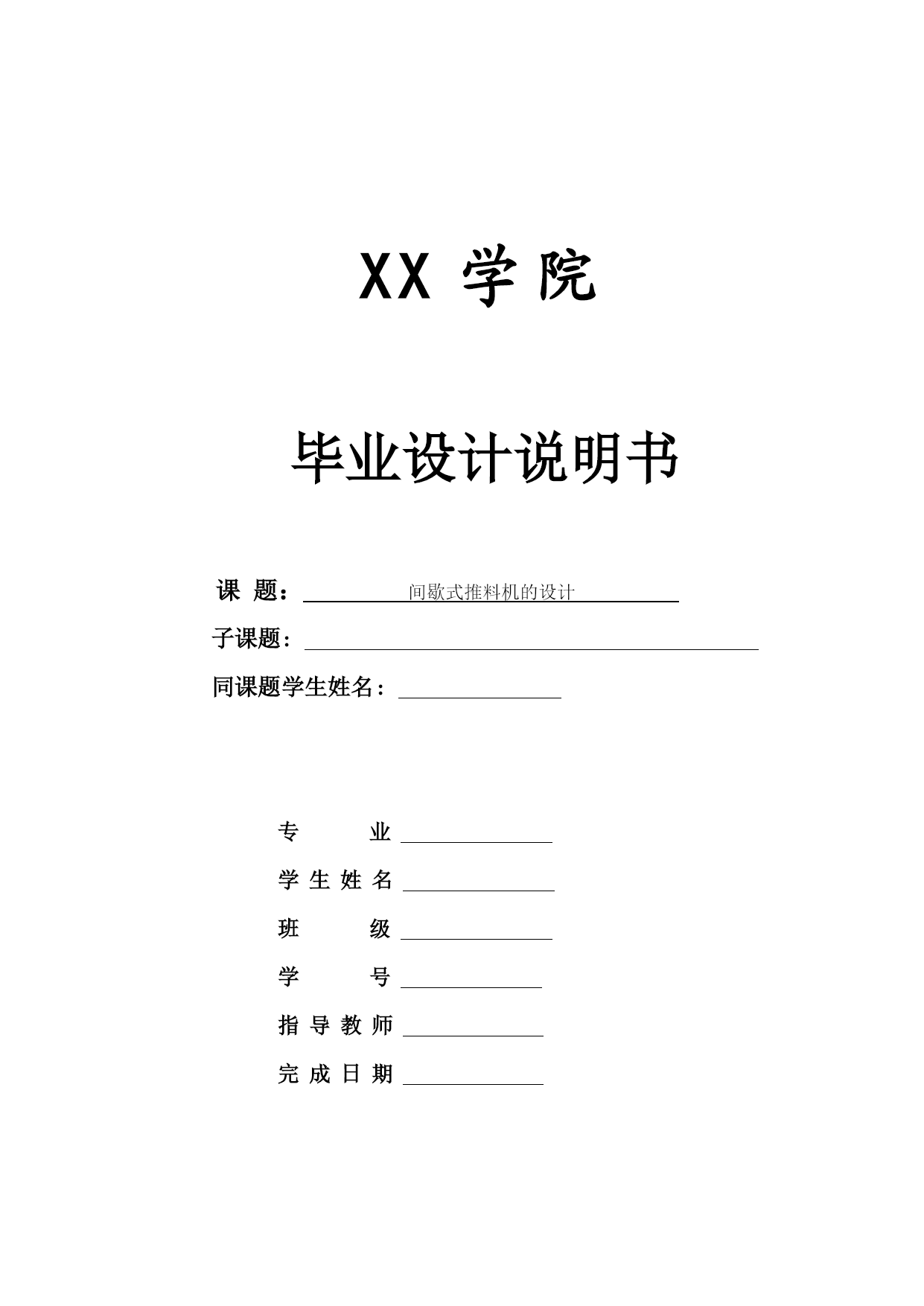

XX学院毕业设计说明书课题：间歇式推料机的设计子课题:同课题学生姓名:专业学生姓名班级学号指导教师完成日期摘要随着机械行业的的发展，热处理伴随其中，热处理是机械电子工业生产中极其重要的工艺，推料机在热处理的工艺中起着举足轻重的地位，从而对推料机的设计有着较深远的意义。本次毕业设计的课题是间歇式推料机设计。间歇式推料机是以间歇的方式将工件输送到加热炉中。其动力源是电动机，电动机通过传动装置、六杆机构，驱动滑架往复运动，工作行程时滑架上的推爪推动工件前移一个步长，当滑架返回时，推爪从工件下滑过，工件不动。当滑架再次向前移动时，推爪已复位，并推动新工件前移，前方推爪也推动前一工件前移。周而复始，工件不断前移。本论文论述的是间歇式推料机的设计过程，主要包括传动系统方案的拟定、电动机的选择、蜗杆减速器的设计、开式齿轮传动及其轴系结构设计、六杆机构的设计等内容。关键词：间歇式推料机；蜗杆减速器；开式齿轮传动；六杆机构AbstractWiththedevelopmentofmachineryindustry,withoneheattreatment,heattreatmentistheproductionofmachineryandelectronicsindustryisextremelyimportantprocess,pushfeederprocessintheheattreatmentplaysanimportantposition,therebypushingfeederdesignhasamorefar-reachingsignificance.ThegraduationissueisintermittentFeedingMachine.IntermittentFeedingmachineisintermittentmannertransportedtothefurnaceintheworkpiece.Thepowersourceisamotor,electricmotordrives,sixinstitutions,drivenreciprocatingslidingshelf,slidingshelveswhenworkingstrokeclawpushforwardasteptopromotetheworkpiece,whentheslidingframereturns,pushingclawfellofffromtheworkpiece,theworkpieceisnotmoving.Whentheslideframetomoveforwardagain,thepushclawhasbeenreset,andpushforwardthenewparts,frontpawsalsohelpedpushforwardthepreviouspiece.Cycle,theworkpiececontinuouslyforward.Thispaperdiscussestheintermittentfeederpushingthedesignprocess,includingtransmissionprogramming,theselectionofmotorandwormgearreducerdesign,gearandtheshaftingofopenstructuredesign,sixorganizationsinthedesign,etc.Keywords:intermittentpushermachine;wormreducer;open-geardrive;sixinstitutions目录TOC\o"1-3"\h\z\uHYPERLINK\l"_Toc262846646"前言PAGEREF_Toc262846646\h1HYPERLINK\l"_Toc262846647"1总体设计PAGEREF_Toc262846647\h2HYPERLINK\l"_Toc262846648"2电动机的选择计算PAGEREF_Toc262846648\h4HYPERLINK\l"_Toc262846649"2.1选择电动机的类型PAGEREF_Toc262846649\h4HYPERLINK\l"_Toc262846650"2.2选择电动机容量PAGEREF_Toc262846650\h4HYPERLINK\l"_Toc262846651"2.3电动机转速的确定PAGEREF_Toc262846651\h4HYPERLINK\l"_Toc262846652"2.4分配
