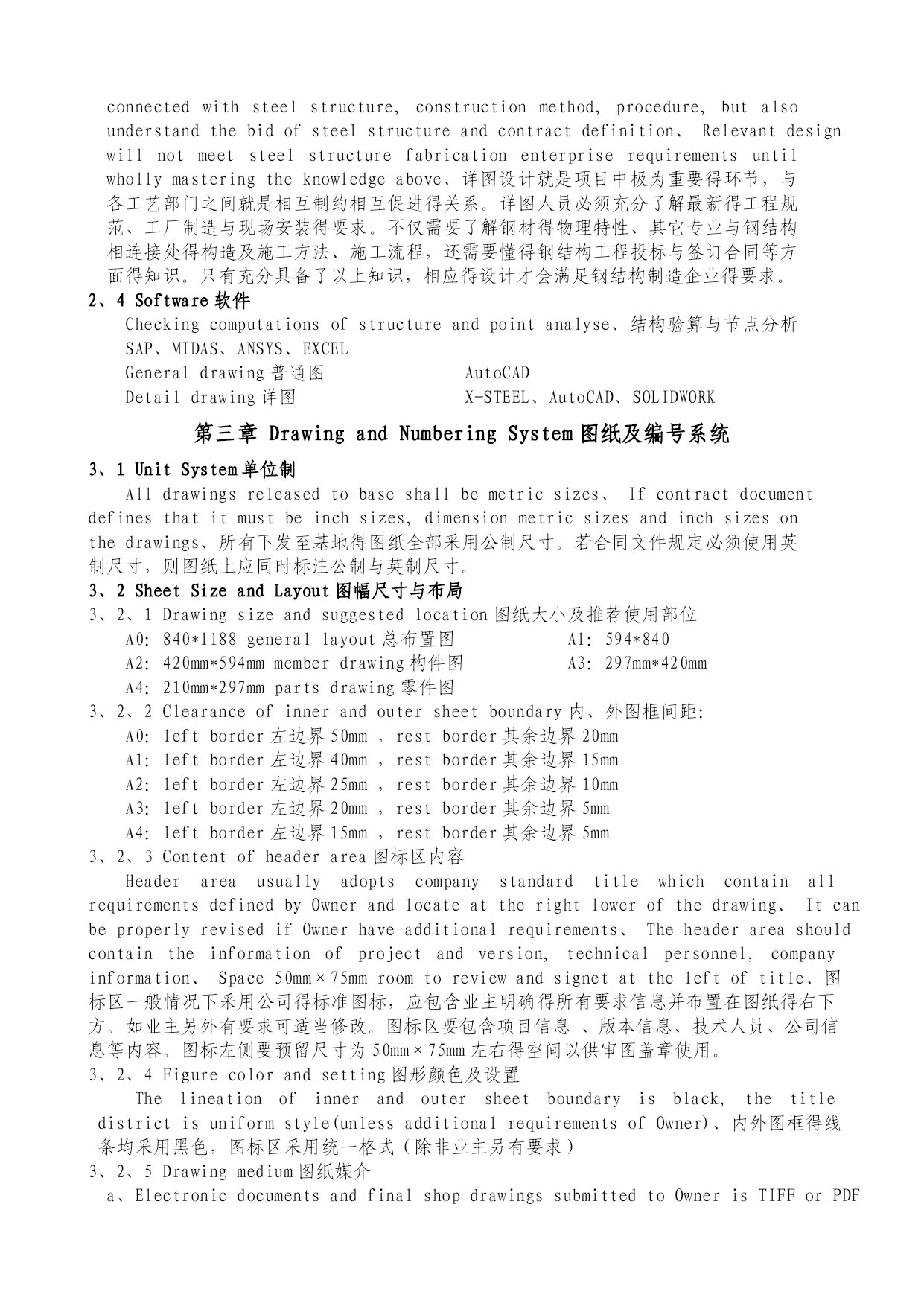

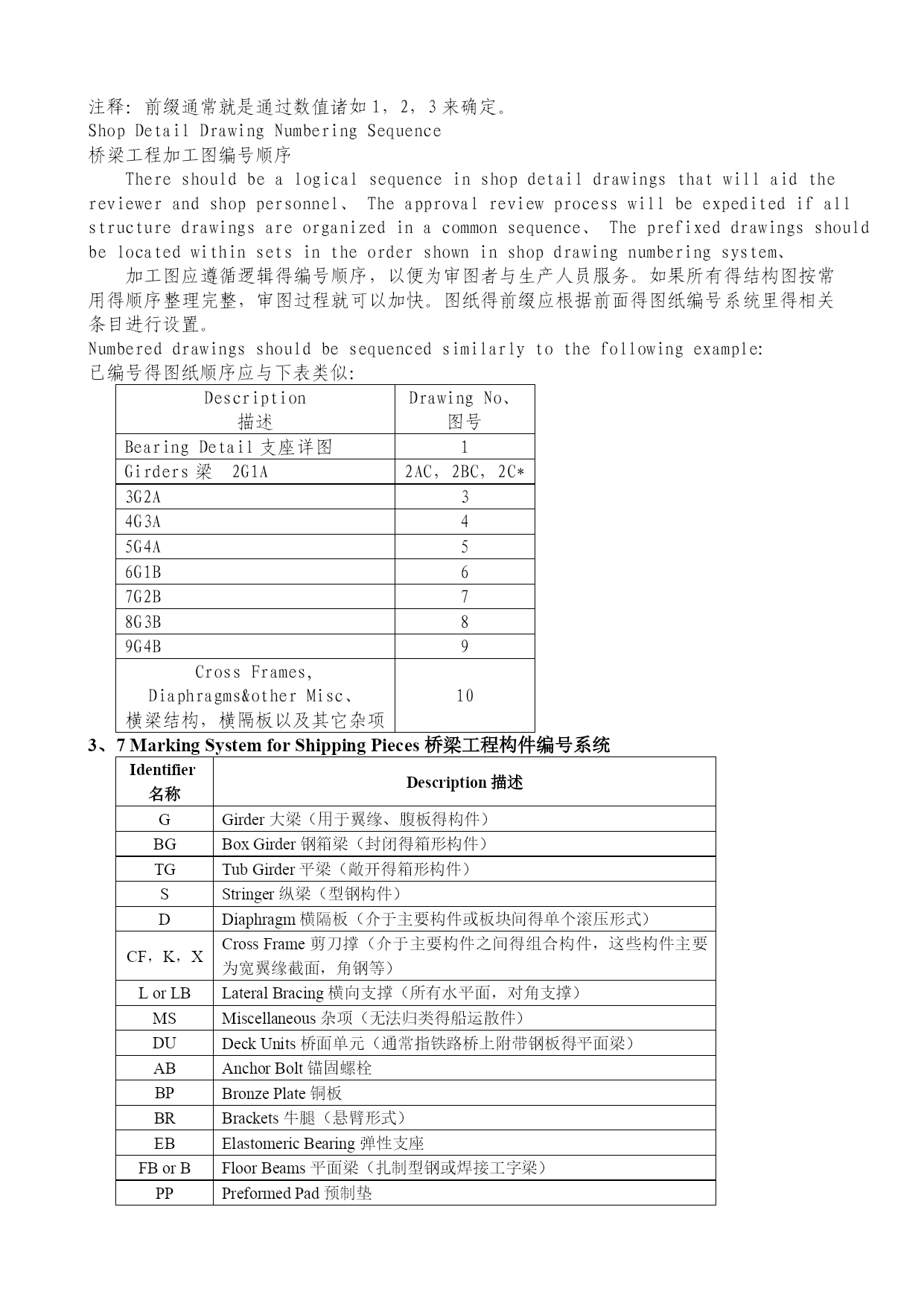

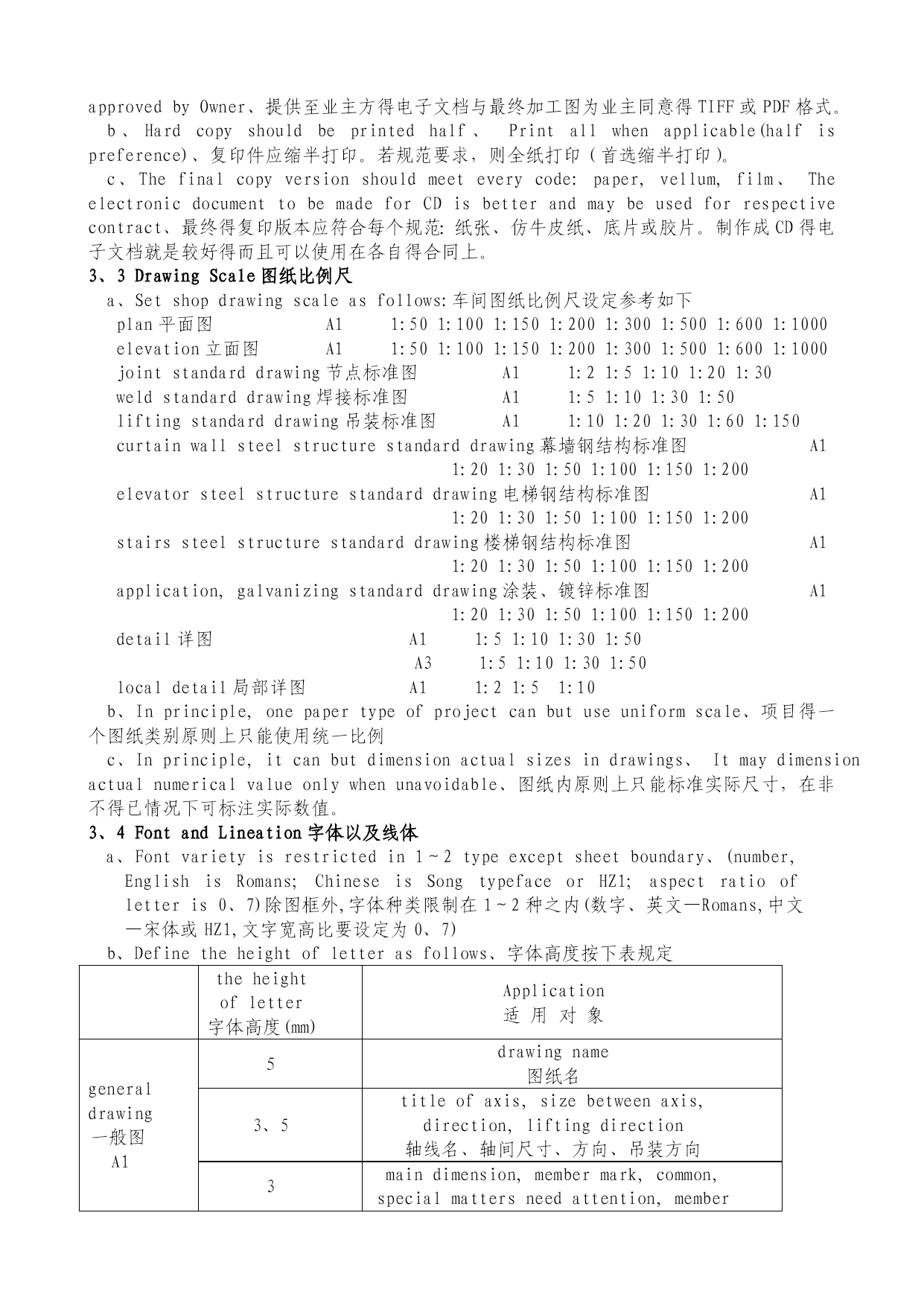

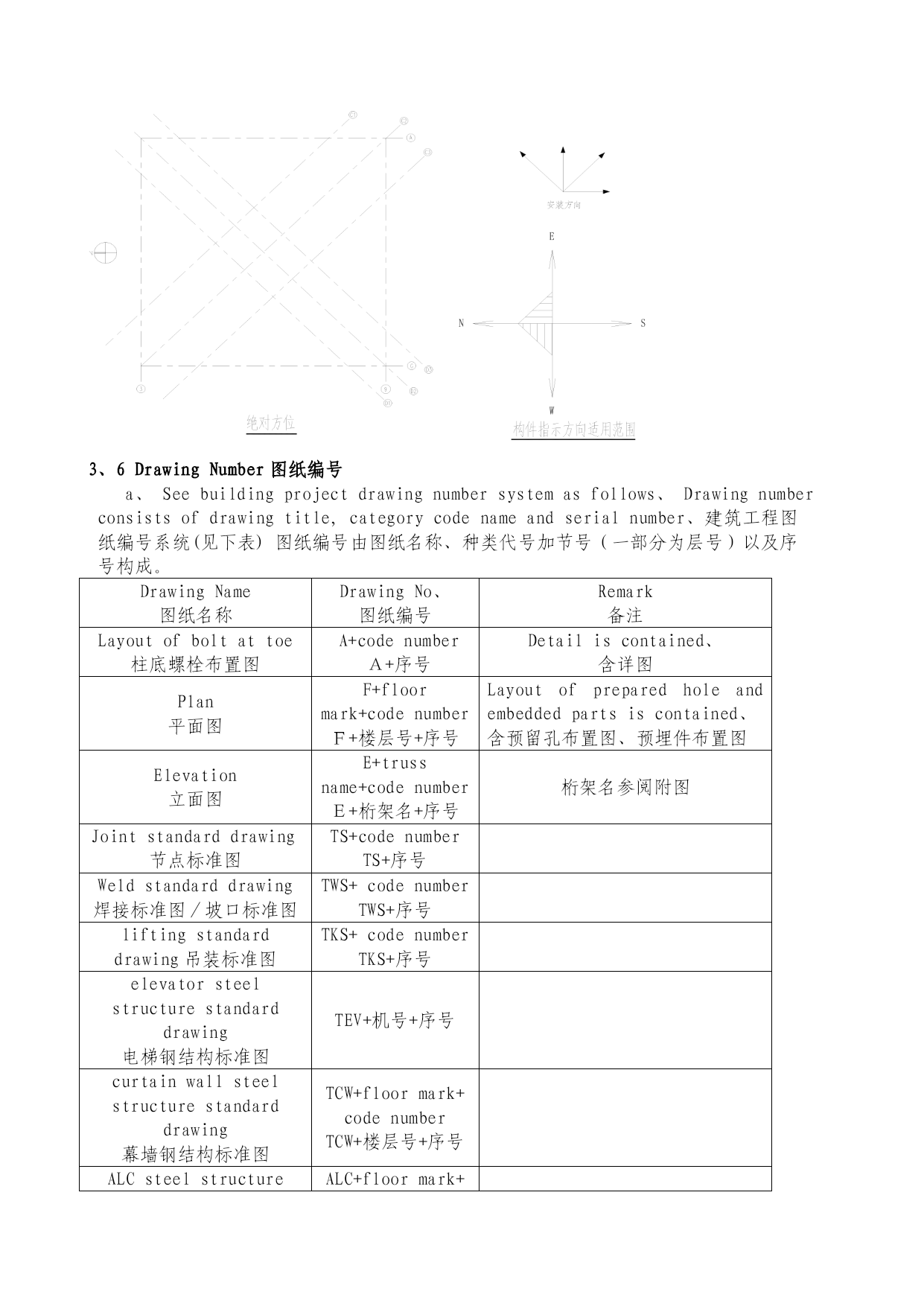

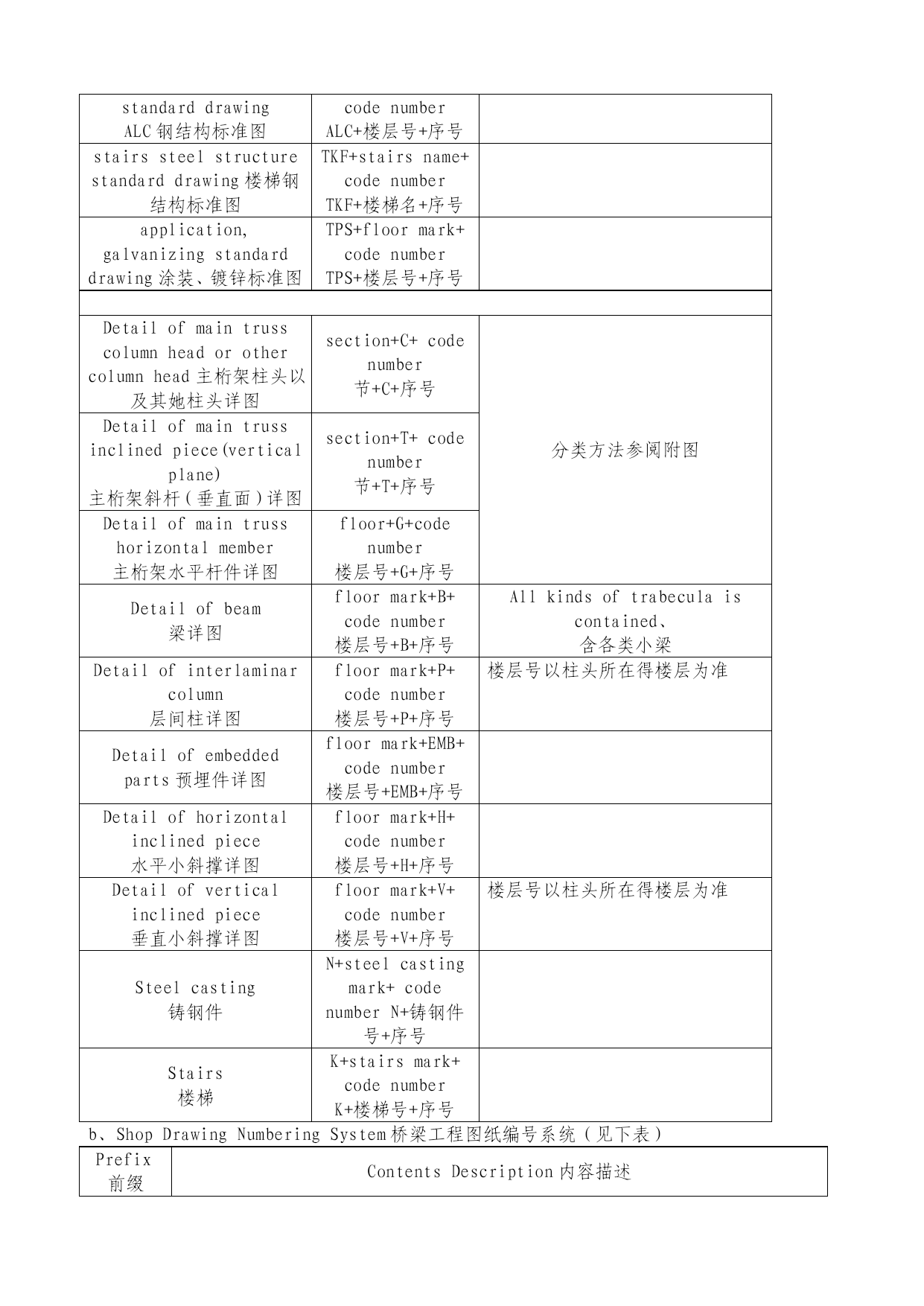

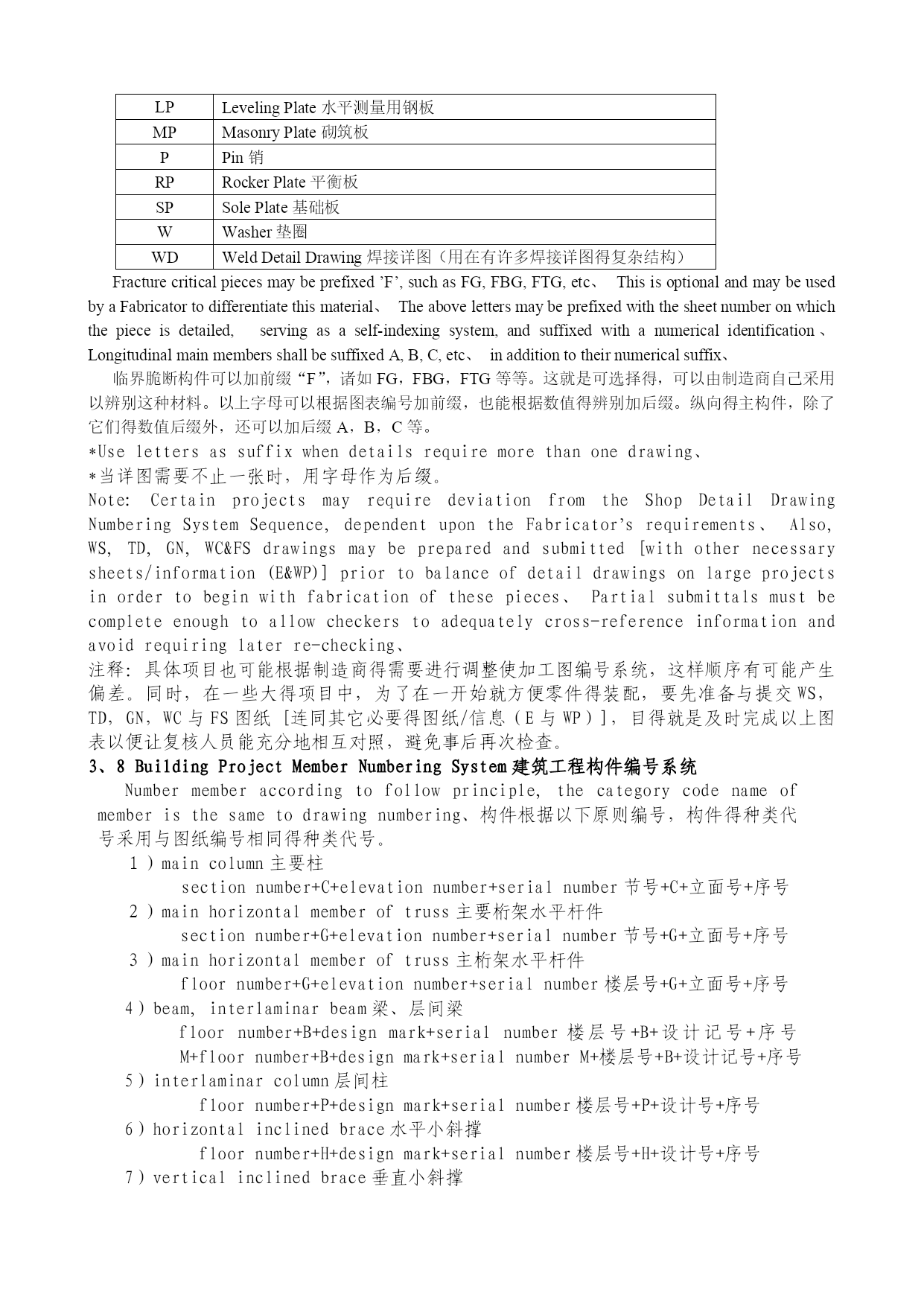

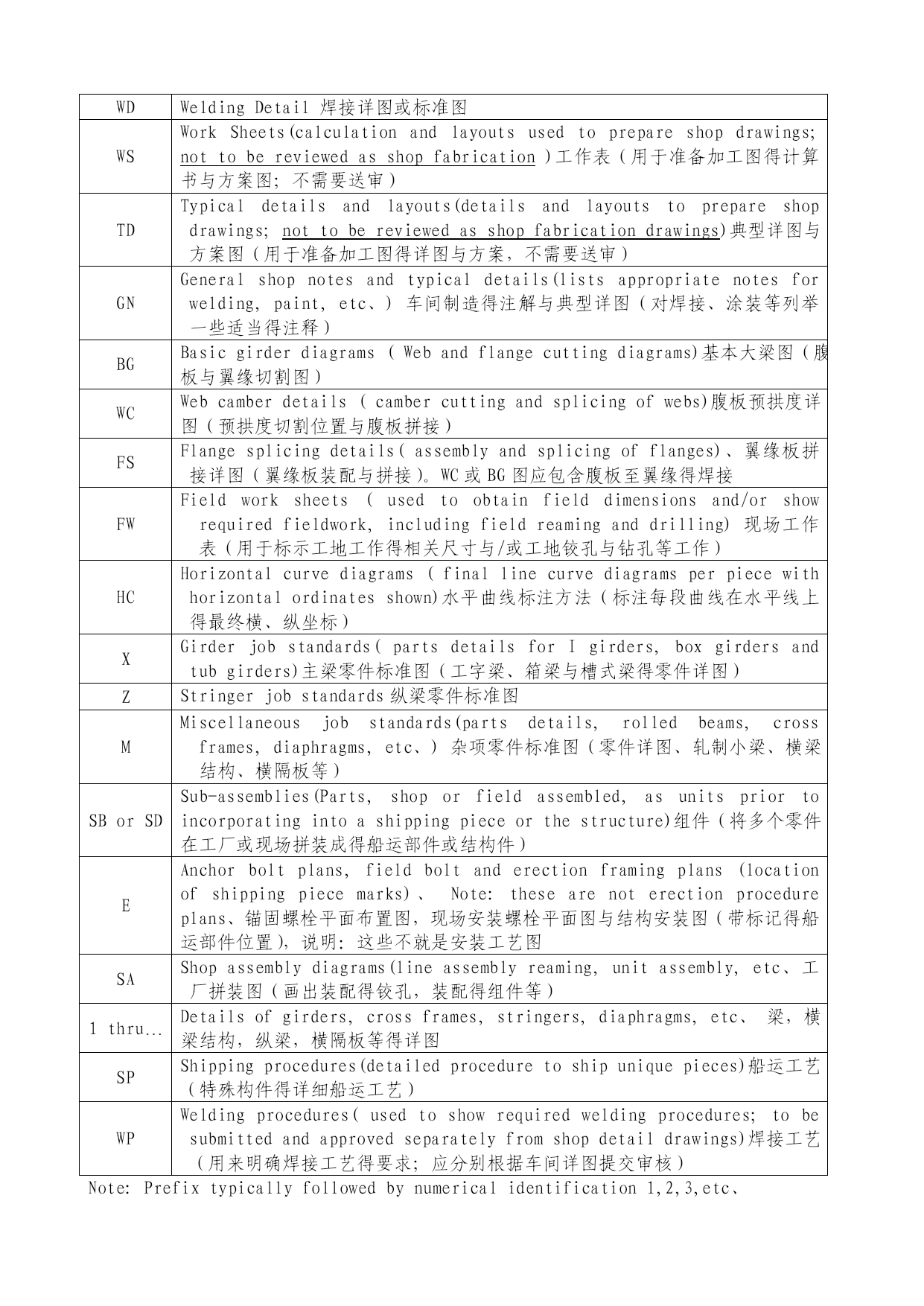

TheStandardofShopDrawingForSteelStructure钢结构详图设计标准第一章GeneralNote总则Thestandardisapplicableforsteelstructureworksuchasbridges,oceanplatform,architecture,etc、,ThestandardshouldbecarriedoutunlessespecialrequirementsofOwner、Thestandardforcedtodefinethecommonofshopdrawings、Shopdrawingsofspecificprojectmayvarywithfacilitiesandfabricationcapacityofshop、Theintentofthestandardistomakedetaildesignofsteelstructureandmanagementstandardization,highqualityandunification、本标准适用于桥梁、海洋工程、建筑等钢结构工程。自本规定颁发后，如业主无特殊要求，均需按本规定执行。本规定对车间图纸得共通部分做了强制规定，具体项目得车间图纸内容可随工厂得设备及制造能力得不同而变化。本规定得目得就是使钢结构详图设计与管理标准化、高质量化及统一化。第二章PrimaryRequirements基本要求2、1TheSignificanceofDetailDesign详图设计得重要性Anyfabricationandassemblyofsteelstructureshouldequiptechnicalpersonnelwhohaveexcellentdiathesis、Shopdrawingdesignbranchisitscore、Thequalityofshopdrawingwilldirectaffectthebranchoffabrication,purchasing,QC,etc、Itwillbringgreatinfluencetoscheduleeven、任何钢结构得制造与安装都需要有一支素质优良得技术人员队伍。深化设计部门就是其中得核心。深化图纸得质量将直接影响到制造、采购、质检等部门，甚至会对工期产生重大影响。2、2ContentofDetailDesign详图设计得内容Thechieftaskofdetaildesignistoplotinitialdesignofsteelstructureputforwardbyarchitectandstructuralengineertodetailofconstruction、Itcontainsconnectionstrengthdesign,shopworkingdrawing,assemblydrawing,partsdrawing,materialbill,typesettingdrawing,etc、Itmayvarywithvariousrequirementsofproject、Itmustcontaindataandnoterequiredbyfabrication、Thedesignpersonnelcanshowthefabricationrequirementssuchascuttingofmembers,hole-punchingmanner,bolts,weldjointthroughdrawingpaper,lineation,sizesandnotes、详图设计得主要任务就是将建筑工程师与结构工程师提出得钢结构初步设计进一步绘制成施工详图，工作内容主要为连接节点强度设计、车间加工图、安装布置图、零件图、材料清单、排板图等内容，具体可能随项目得要求不同而有所改变。详图内必须包含制造所必须得数据与说明。设计人员可通过图纸、线条、尺寸与注释等，标明构件得切割、打孔方式、螺栓、焊缝等制造要求2、3ProcessRelationbetweenDetailDesignandFabrication,Assembly详图设计与制造、安装等得工艺关系Detaildesignisveryimportantsegmentinproject、Itrestrictandpromotewitheverycraftbranch、Designpersonnelshouldfullyknowtherecentspecification,shopfabricationandfielderectionrequirements、Itshouldnotonlyknowthephysicalproperty,otherspecialityands
