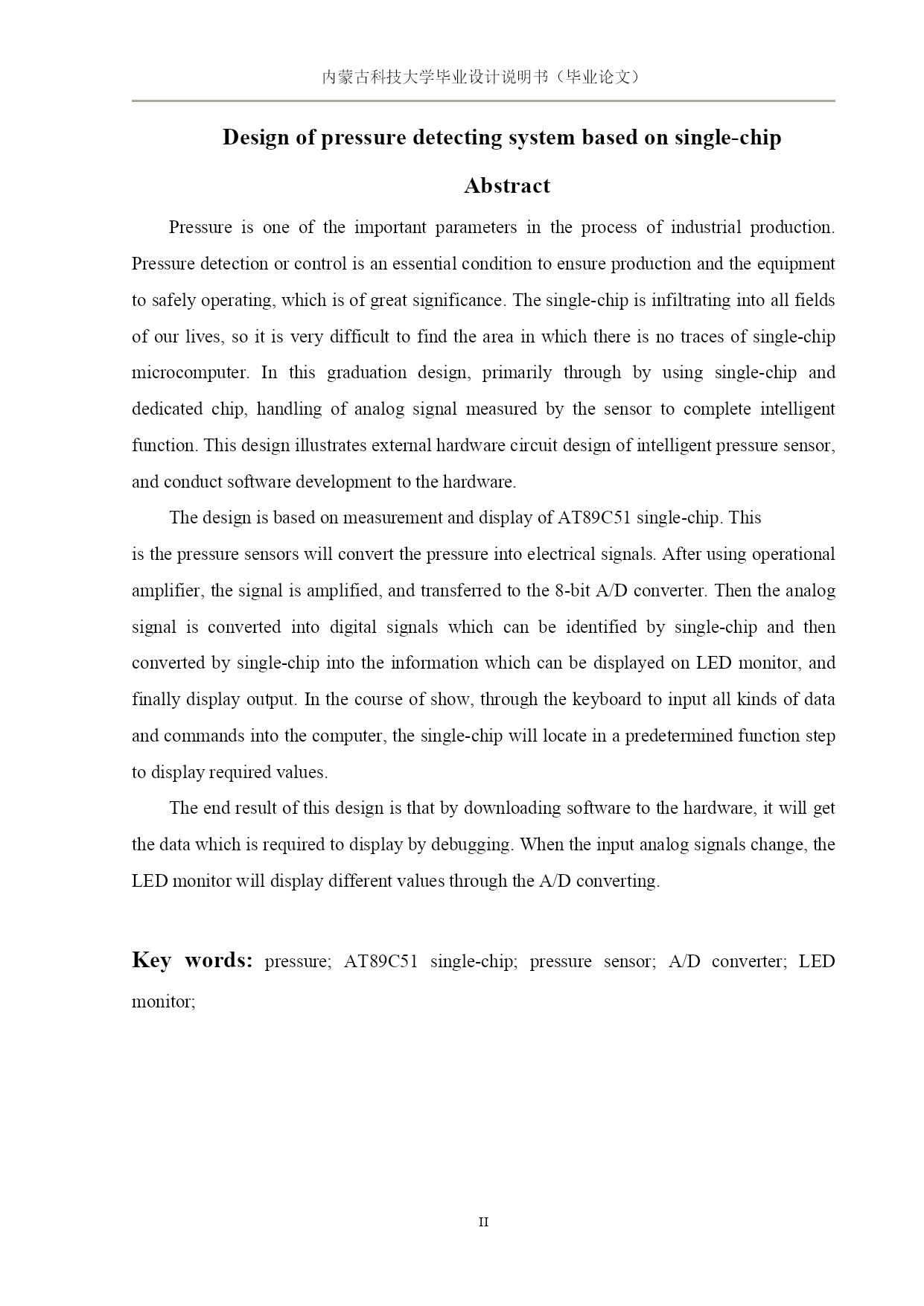

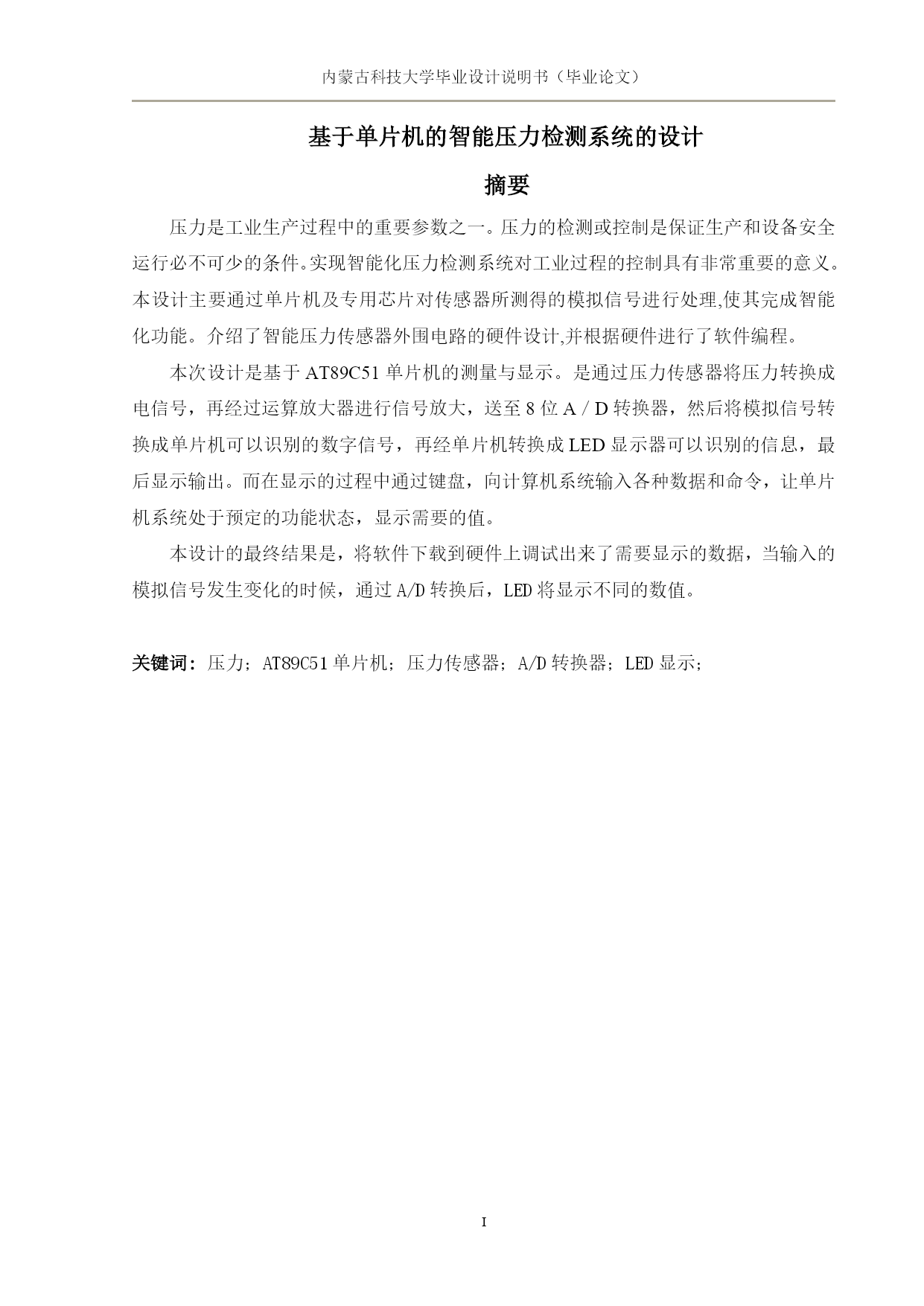

内蒙古科技大学毕业设计说明书（毕业论文）题目：基于单片机的智能压力检测系统的设计基于单片机的智能压力检测系统的设计摘要压力是工业生产过程中的重要参数之一。压力的检测或控制是保证生产和设备安全运行必不可少的条件。实现智能化压力检测系统对工业过程的控制具有非常重要的意义。本设计主要通过单片机及专用芯片对传感器所测得的模拟信号进行处理,使其完成智能化功能。介绍了智能压力传感器外围电路的硬件设计,并根据硬件进行了软件编程。本次设计是基于AT89C51单片机的测量与显示。是通过压力传感器将压力转换成电信号，再经过运算放大器进行信号放大，送至8位A／D转换器，然后将模拟信号转换成单片机可以识别的数字信号，再经单片机转换成LED显示器可以识别的信息，最后显示输出。而在显示的过程中通过键盘，向计算机系统输入各种数据和命令，让单片机系统处于预定的功能状态，显示需要的值。本设计的最终结果是，将软件下载到硬件上调试出来了需要显示的数据，当输入的模拟信号发生变化的时候，通过A/D转换后，LED将显示不同的数值。关键词:压力；AT89C51单片机；压力传感器；A/D转换器；LED显示；Designofpressuredetectingsystembasedonsingle-chipAbstractPressureisoneoftheimportantparametersintheprocessofindustrialproduction.Pressuredetectionorcontrolisanessentialconditiontoensureproductionandtheequipmenttosafelyoperating,whichisofgreatsignificance.Thesingle-chipisinfiltratingintoallfieldsofourlives,soitisverydifficulttofindtheareainwhichthereisnotracesofsingle-chipmicrocomputer.Inthisgraduationdesign,primarilythroughbyusingsingle-chipanddedicatedchip,handlingofanalogsignalmeasuredbythesensortocompleteintelligentfunction.Thisdesignillustratesexternalhardwarecircuitdesignofintelligentpressuresensor,andconductsoftwaredevelopmenttothehardware.ThedesignisbasedonmeasurementanddisplayofAT89C51single-chip.Thisisthepressuresensorswillconvertthepressureintoelectricalsignals.Afterusingoperationalamplifier,thesignalisamplified,andtransferredtothe8-bitA/Dconverter.Thentheanalogsignalisconvertedintodigitalsignalswhichcanbeidentifiedbysingle-chipandthenconvertedbysingle-chipintotheinformationwhichcanbedisplayedonLEDmonitor,andfinallydisplayoutput.Inthecourseofshow,throughthekeyboardtoinputallkindsofdataandcommandsintothecomputer,thesingle-chipwilllocateinapredeterminedfunctionsteptodisplayrequiredvalues.Theendresultofthisdesignisthatbydownloadingsoftwaretothehardware,itwillgetthedatawhichisrequiredtodisplaybydebugging.Whentheinputanalogsignalschange,theLEDmonitorwilldisplaydifferentvaluesthroughtheA/Dconverting.Keywords:pressure;AT89C51single-chip;pressuresensor;A/
