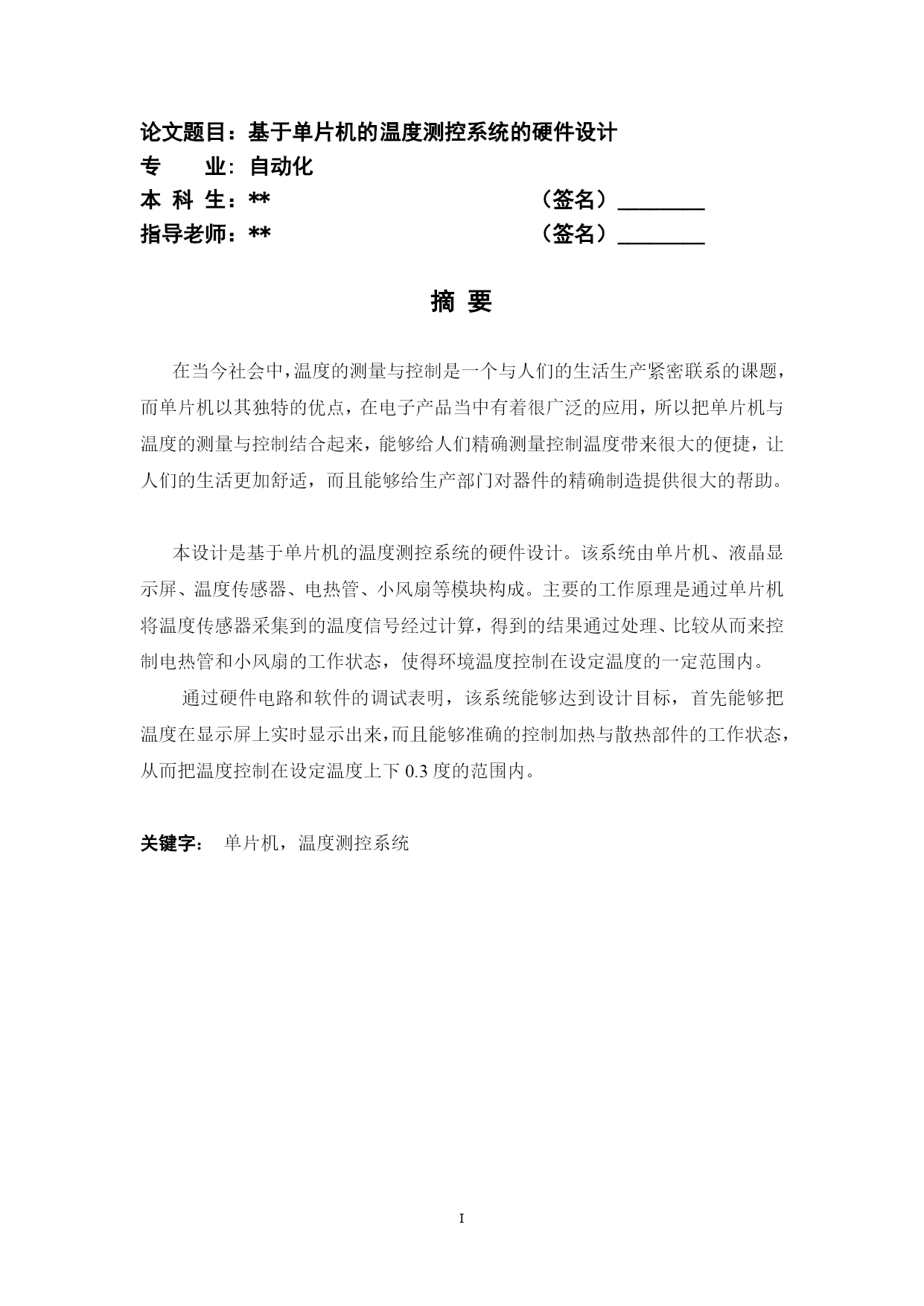

论文题目：基于单片机的温度测控系统的硬件设计专业:自动化本科生：**（签名）________指导老师：**（签名）________摘要在当今社会中，温度的测量与控制是一个与人们的生活生产紧密联系的课题，而单片机以其独特的优点，在电子产品当中有着很广泛的应用，所以把单片机与温度的测量与控制结合起来，能够给人们精确测量控制温度带来很大的便捷，让人们的生活更加舒适，而且能够给生产部门对器件的精确制造提供很大的帮助。本设计是基于单片机的温度测控系统的硬件设计。该系统由单片机、液晶显示屏、温度传感器、电热管、小风扇等模块构成。主要的工作原理是通过单片机将温度传感器采集到的温度信号经过计算，得到的结果通过处理、比较从而来控制电热管和小风扇的工作状态，使得环境温度控制在设定温度的一定范围内。通过硬件电路和软件的调试表明，该系统能够达到设计目标，首先能够把温度在显示屏上实时显示出来，而且能够准确的控制加热与散热部件的工作状态，从而把温度控制在设定温度上下0.3度的范围内。关键字：单片机，温度测控系统Subject:TemperaturecontrolsystemhardwaredesignbasedonMicrocontrollerSpecialty:AutomationName:**(signature)_____Instructor:**(signature)_____ABSTRACTIntoday'ssociety,themeasurementandcontroloftemperatureisthesubjectofaproductionandisveryclosetopeople'slife,whilethemicrocontrollerwithitsuniqueadvantages,theelectronicproductswhichhaveaverywiderangeofapplications,sothemicrocontrollerandtemperaturemeasurementandcontrolofcombineditcanaccuratelymeasurethetemperaturecontroltothepeopleagreatdealofconvenience,sothatpeople'slivesmorecomfortable,butalsototheproductiondepartmentforprecisionmanufacturingdevicesprovidegreathelp.Thisdesignisatemperaturecontrolsystemhardwaredesignbasedonmicrocontroller.Thesystemconsistsofmicrocontroller,LCDdisplay,temperaturesensor,heatingpipes,fansandothersmallmodules.Themainresultofworksbythemicrocontrollertemperaturesensortothetemperaturesignalhasbeencalculated,obtainedbyprocessing,comparisonandthustocontroltheheatingpipesandasmallfanoperatingstatus,makingtheambienttemperatureiscontrolledwithinacertainrangeoftemperaturesettings.Throughhardwareandsoftwaredebuggingshowedthatthesystemcanachievethedesigngoal,firstthetemperaturecanbedisplayedinrealtimeonthescreen,andcanaccuratelycontroltheworkingstatusofheatingandcoolingcomponents,thusbringingdownthetemperaturecontrolatthesettemperaturewithintherangeof0.3degrees.KEYWORDS:microcontroller,temperaturecontrolsystem目录TOC\o"1-3"\h\z\uHYPERLINK\l"_Toc390350551"第一章绪论PAGEREF_Toc390350551\h1HYPERLINK\l"_To
